десантный контейнер как бы сделан, за исключением некоторых моментов кои доработаем позже. Какие есть мысли по поводу тактических обозначений на нем? буквы, полоски, цвет?

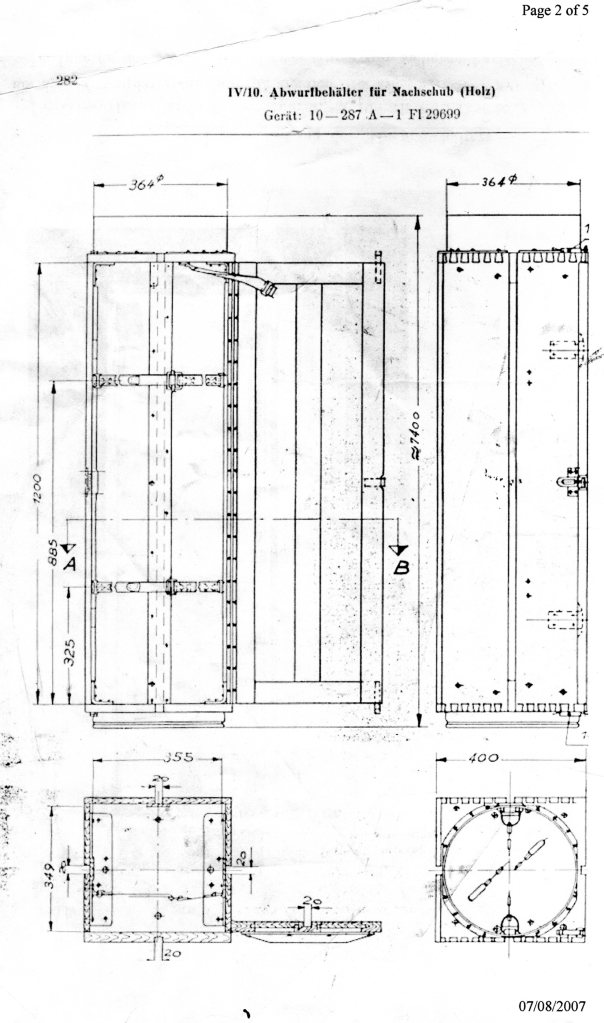

тут подборка фото и нем. доки (диаграммы) по типам... http://www.fallschirmjager.net/Vehicles/DropCanister/index.html
Краткое обяснение... http://www.feldgrau.com/articles.php?ID=18 Weapons and Equipment Containers Because of the rather athletic forward landing roll necessitated by their parachute harness, the German paratrooper could carry little more than a pistol and some grenades on his person. Therefore, many weapons containers, called Waffenhalter, had to be carried and dropped. A single 40 man plus platoon of Fallschirmjaeger needed no less than fourteen containers just for weapons and a basic ammunition supply. The containers were carried either under the Wings or in a bomb-bay. Each container could hold over 200 pounds of equipment and the maximum loaded weight was 260 pounds. It was five long and about 16 inches square. The container had a crash pad at one end and the parachute was connected at the other end. Some containers were equipped with a pair of small wheels and a tow bar that could be clipped onto the container after the drop. This allowed the container to be towed from the drop zone. The number one priority of the troops upon landing was to find their containers. colored bands or other markings were used to aid retrieval by the correct units and to indicate which items the container carried.
тут есть расшифровка FL намеров которые обозначяют содержание контейнера искать по Meaning of the FL numbers http://www.fjr2.be/Pagina E-26- German parachutes.htm
